Excavator Tools Excavator Attachment Good Steel High Performance Low Noise

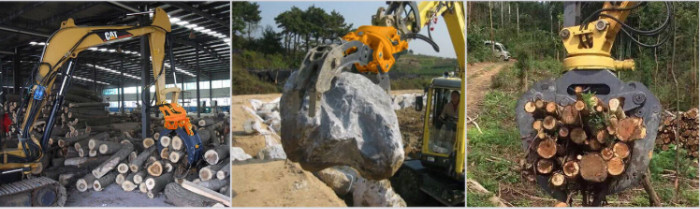

Grapples are used for handing of stones,wood,cane,pipes,disposable waste,landscaping works and many others.
There are two types:
Wooden grapple: wood and large scraps handling, moving, loading and organizing.
Stone grapple: stone, steel and iron demolition, scrap handling, cleaning, moving, loading, moving, sorting and organizing materials in order.
The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.-Unlimited clockwise and anti-clockwise 360 rotatable.
Special designed swing bearing for durability and big cylinder for more power.
Check valve is embedded for better safety shock value enclosed for better safety from damage.
The grapple easily grabs objects and does not need the excavator curl cylinder. No additional hydraulics are needed to operate the grapple. It is easy to install and easy to operate just using the hydraulics that are already on the machine. It has a 4 x 2 tine design which makes it quick and effective in sorting and sifting through waste and debris.
The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.
| Model | Unit | KDKL 03 | KDKL 04 | KDKL 06 | KDKL 08 | KDKL 10 | KDKL 14 | KDKL 20 |
| Weight | Kg | 320 | 390 | 740 | 1380 | 1700 | 1900 | 2100 |
| Opening | M/m | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | 2700 |
| Oil Pressure | kg/cm2 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Operating flux | kg/cm2 | 170 | 180 | 190 | 200 | 210 | 250 | 250 |
| Cylinder Volume | L/min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | 250-320 |
| Suitable excavator | Ton | 4×2 | 4.5×2 | 8.0×2 | 9.7×2 | 12×2 | 12×2 | 14×2 |
| Applicable Excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 |
1. High quality material (Q345b) provide high steel toughness and good abrasive resistance
2. Special designed swing bearing for durability and big cylinder for more power.
3. Flexible choices dependent on job environment Operator can control the rotating speed.
4. Check valve cylinder , provide good reliability and safety.
5. Large open dimension , light weight with excellent performance
Applications in handing of stones,wood,cane,pipes,disposable waste,landscaping works and many others.
